Description

Available for hire from Breckland Plant Hire, the Topcon RL-H5A is a high-performance, self-levelling rotary laser designed for a variety of construction applications, including grading, excavation, and site preparation. With a working range of up to 800 metres in diameter and an accuracy of ±10 arc seconds, it ensures precise and efficient measurements on large job sites.

The RL-H5A features electronic self-levelling within ±5 degrees, allowing for quick setup and automatic adjustments if the unit is disturbed. Its robust construction boasts an IP66 rating, providing resistance against dust and heavy rain, making it suitable for challenging outdoor conditions.

The included LS-100D digital detector enhances measurement accuracy, offering clear digital readouts in both millimetres and inches. This detector is equipped with a large, easy-to-read display and audible alerts, facilitating efficient grading and levelling tasks.

Key Features:

• Long-Range Operation: Up to 800m diameter working range.

• High Accuracy: ±10 arc seconds horizontal accuracy.

• Self-Levelling: Electronic self-levelling within ±5 degrees.

• Durable Design: IP66 rating for dust and water resistance.

• Extended Battery Life: Up to 100 hours with D-cell batteries or 60 hours with rechargeable battery pack.

• LS-100D Detector: Digital readouts in mm/inch, large display, and audible alerts.

Specifications:

• Laser Class: Class 2

• Laser Type: 635nm visible red beam

• Rotation Speed: 600 rpm

• Operating Temperature: -20°C to 50°C

• Dimensions: 205 x 211 x 172 mm

• Weight: Approximately 3.5 kg

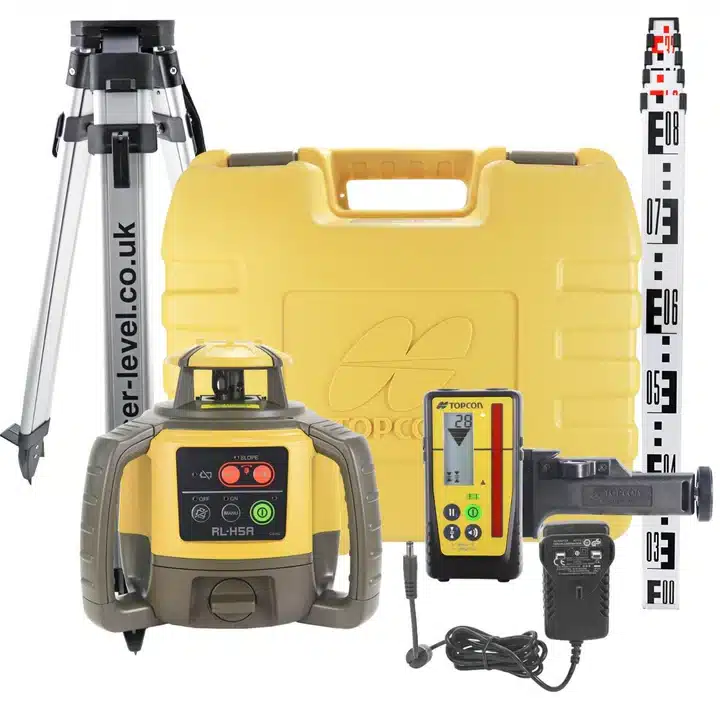

Kit Includes:

• Topcon RL-H5A Rotary Laser Level

• LS-100D Digital Detector with Bracket

• Tough Carrying Case

• Rechargeable Battery Pack and Charger

• User Manual

Ideal for professionals requiring reliable and precise levelling equipment, the Topcon RL-H5A with LS-100D detector ensures accuracy and efficiency on every project.
